Flexible Rubber Joint with Vibration Absorption Wide Temperature Range Flanged Connection
Product Description:
Liwei recognizes the importance of precision and detail in industrial components. To this end, the company offers detailed drawings for the Double sphere flexible rubber joint, allowing clients to have a comprehensive understanding of the product before installation. These drawings serve as a crucial resource for engineers and technicians, providing them with the necessary specifications to ensure a proper fit and optimal performance.
Applications:
- Petroleum industry
- Mining industry
- Metallurgical manufacturing industry
- Environmental protection industry
- Water supply and drainage industry
- Paper industry
Technical Parameters:
Diameter
DN | Length
mm | Axis displacement | Radial
displacement | Deflexion
displacement |
| TYPE 1 | TYPE 2 |
| mm | inch | Extension | Compression | Extension | Comgression | TYPE 1 | TYPE 2 | TYPE1 | TYPF 2 |
| 32 | 11/4" | 165 | 30 | 50 | | | 45 | | ±7.5° | |
| 40 | 11/2” | 165 | 30 | 50 | | | 45 | | ±7.5° | |
| 50 | 2" | 165 | 30 | 50 | | | 45 | | ±7.5° | |
| 65 | 21/2” | 175 | 30 | 50 | | | 45 | | ±7.5° | |
| 80 | 3" | 175 | 30 | 50 | | | 45 | | ±7.5° | |
| 100 | 4" | 225 | 35 | 50 | | | 45 | | ±7.5° | |
| 125 | 5" | 225 | 35 | 50 | | | 45 | | ±7.5° | |
| 150 | 6" | 225 | 35 | 50 | | | 45 | | ±7.5° | |
| 200 | 8" | 325 | 35 | 60 | | | | | | |
| 250 | 10" | 325 | 35 | 60 | | | | | | |
| 300 | 12" | 325 | 35 | 60 | | | | | | |
| 350 | 14" | 325 | 35 | 60 | | | | | | |
| 400 | 16" | 400 | 40 | 60 | | | | | | |
| 450 | 18" | 400 | | | 65 | 70 | | 70 | | ±12° |
| 500 | 20" | 400 | | | 65 | 70 | | 70 | | ±12° |
| 600 | 24" | 400 | | | 70 | 75 | | 75 | | ±12° |
| 700 | 28" | 400 | | | 70 | 75 | | 75 | | ±12° |
| 800 | 32" | 450 | | | 70 | 75 | | 75 | | ±12° |
| 900 | 36" | 450 | | | 70 | 75 | | 75 | | ±12° |
| 1000 | 40" | 450 | | | 75 | 80 | | 70 | | ±12° |
| 1200 | 48" | 500 | | | 75 | 80 | | 70 | | ±10° |
| 1400 | 56" | 500 | | | 75 | 80 | | 70 | | ±10° |
| 1600 | 64" | 500 | | | 75 | 80 | | 70 | | ±10° |
| 1800 | 72" | 500 | | | 80 | 85 | | 65 | | ±10° |
| 2000 | 80" | 550 | | | 80 | 85 | | 65 | | ±10° |
| 2200 | 88" | 550 | | | 80 | 85 | | 65 | | ±10° |
| 2400 | 96" | 550 | | | 80 | 85 | | 65 | | ±10° |
| 2600 | 104" | 550 | | | 80 | 85 | | 65 | | ±10° |
| 2800 | 112" | 550 | | | 80 | 85 | | 65 | | ±10° |
| 3000 | 120" | 550 | | | 80 | 85 | | 65 | | ±10 |
| • Special size and length can be customized for you. |
Advantages:
Rich production experience
Professional technical team
Effective cooperation between logistics departments
High quality product accessories
Excellent corrosion resistance
Excellent shock absorption effect
Good after-sales service
Extremely high industry reputation

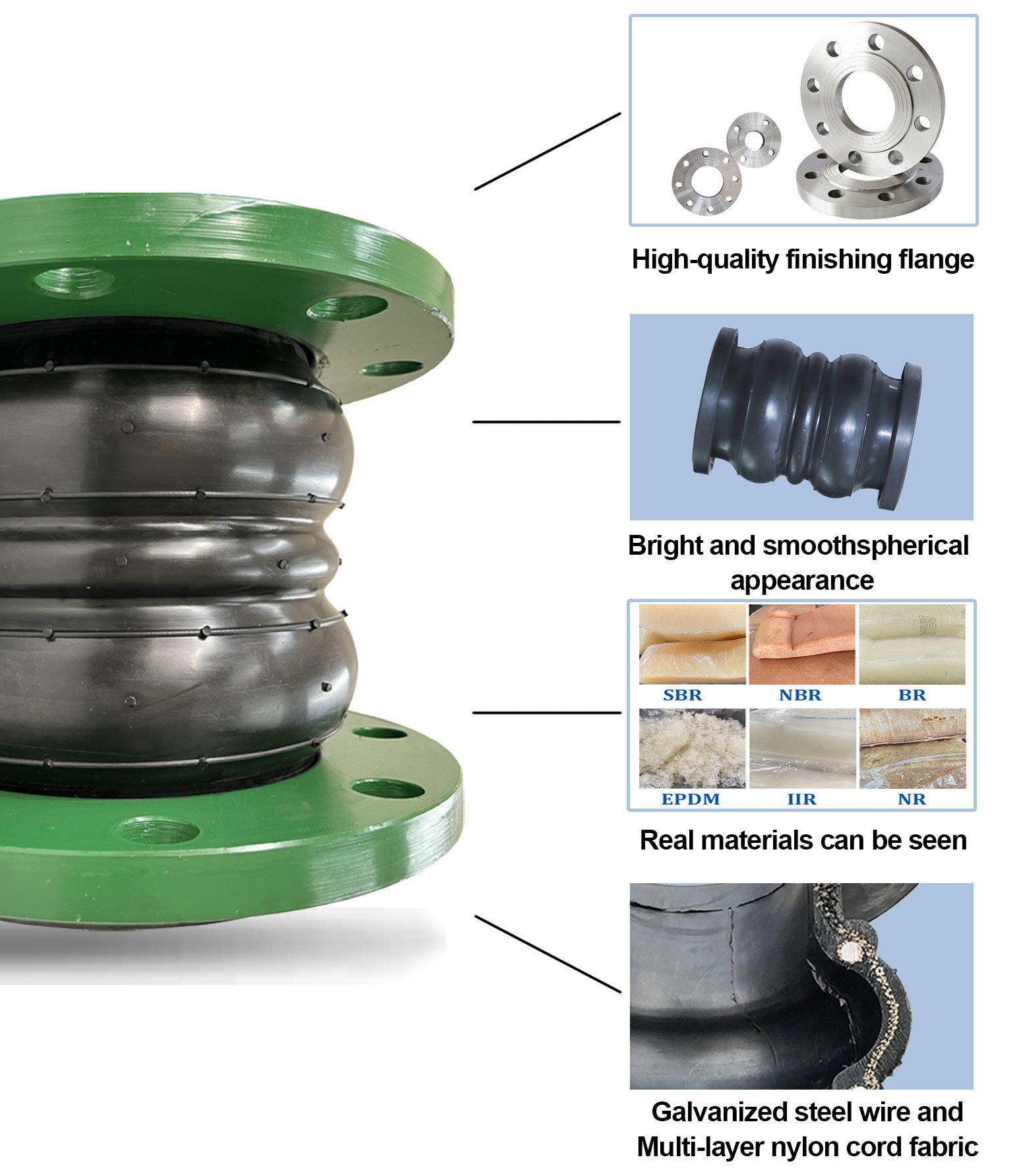

Product structure:
| No | Name | Material | Remarks |
| 1 | Outer/inner rubber | EPDM,NR,NBR,PTFE,BR,CR,BR+CR,FKM,Sylopute | Select different materialsaccording to the media |
| 2 | Frame | Nylon cord fabric | the density and number oflayers determine the pressure |
| 3 | Pressurized ring | Steel wire strand | Prevent pressure bearing offdeformation from being pulled |
| 4 | Flange | Stainless steel, carbon steel,ductile iron. | Choose different materials according to your requirements |
Packing and Shipping:
The double ball flexible rubber joint is carefully packaged to ensure its integrity and quality upon arrival.
The product was initially wrapped in a protective plastic film to protect it from moisture and dirt.
It is wrapped in a sturdy custom cardboard box to minimize movement and potential damage during transportation.
Then seal the box with heavy-duty packaging tape and clearly label the product name, size, and handling instructions for safe and efficient transportation.
To increase safety, the box is tied to a wooden pallet, which provides stability and prevents the package from tipping over during transportation.
Each batch of goods is accompanied by a detailed packing list and installation instructions to assist the recipient in inventory management and product usage.
FAQ:
Q1: What is the model number range for the Leiwei Double sphere flexible rubber joint?
A1: The model number for the Leiwei Double sphere flexible rubber joint ranges from DN15 to DN4000, catering to a wide variety of pipeline sizes and requirements.
Q2: Where is the Leiwei Double sphere flexible rubber joint manufactured?
A2: The Leiwei Double sphere flexible rubber joint is manufactured in Henan, China, ensuring high-quality standards and manufacturing excellence.
Q3: What certifications does the Leiwei Double sphere flexible rubber joint have?
A3: The Leiwei Double sphere flexible rubber joint comes with multiple certifications including ISO9001, TUV, WRAS, CO, MTC, PL, IV, etc., demonstrating compliance with international quality and safety standards.
Q4: What is the minimum order quantity for the Leiwei Double sphere flexible rubber joint and how is it packaged?
A4: The minimum order quantity for the Leiwei Double sphere flexible rubber joint is 1 set. It comes packaged with an inner plastic film and an outer wooden case. If multiple compensators are packed in one case, a steel frame is used for secure fixing.
