Single Sphere flexible rubber joint Customizable Wide Application Temperature -15.C To 80.C
Product Description:

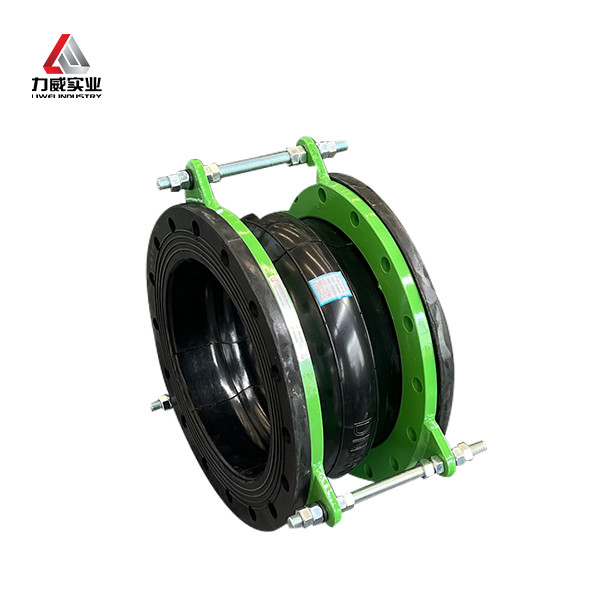

The single ball rubber joint, also known as the single ball flexible rubber joint, adopts a streamlined, large deflection design, does not affect the flow rate in the pipeline transportation process, plays a shock absorption, noise reduction, to meet the characteristics of multi-directional displacement. Provides many benefits for various plumbing systems. The product is designed to fit the size range DN15 to DN4000 and is suitable for a variety of pipe diameters. And there are extended range options that can handle temperatures as low as -30°C and up to 150°C. To ensure suitability for almost any application requirement.
Applications:
The Liwei single sphere flexible rubber joint is a highly adaptable and durable solution, suitable for many applications where safe and efficient fluid processing is crucial. Its design and construction ensure lifespan, safety, and performance, making it an invaluable asset in any integrated system. He can be widely applied to:
- Petroleum industry
- Mining industry
- Metallurgical manufacturing industry
- Environmental protection industry
- Water supply and drainage industry
- Paper industry
Technical Parameters:
DN
Diameter | Length
mm | Axis displacement | Radial
displacement | Deflexion
displacement |
| TYPE 1 | TYPE 2 |
| mm | inch | Extension | Compression | Extension | Comgression | TYPE 1 | TYPE 2 | TYPE1 | TYPF 2 |
| 32 | 11/4" | 90 | 6 | 10 | | | 9 | | ±7.5° | |
| 40 | 11/2” | 95 | 7 | 10 | | | 9 | | ±7.5° | |
| 50 | 2" | 105 | 7 | 10 | | | 10 | | ±7.5° | |
| 65 | 21/2” | 115 | 7 | 13 | | | 11 | | ±7.5° | |
| 80 | 3" | 135 | 8 | 15 | | | 12 | | ±7.5° | |
| 100 | 4" | 150 | 10 | 19 | | | 13 | | ±7.5° | |
| 125 | 5" | 165 | 12 | 19 | | | 13 | | ±7.5° | |
| 150 | 6" | 180 | 12 | 20 | | | 14 | | ±7.5° | |
| 200 | 8" | 210 | 16 | 25 | 30 | 35 | 22 | 25 | ±7.5° | ±10° |
| 250 | 10" | 230 | 16 | 25 | 30 | 40 | 22 | 25 | ±7.5° | ±12° |
| 300 | 12" | 245 | 16 | 25 | 30 | 40 | 22 | 25 | ±7.5° | ±12° |
| 350 | 14" | 255 | 16 | 25 | 35 | 45 | 22 | 30 | ±7.5° | ±12° |
| 400 | 16" | 255 | 16 | 25 | 35 | 45 | 22 | 30 | ±7.5° | ±12° |
| 450 | 18" | 255 | 16 | 25 | 36 | 47 | 22 | 30 | ±7.5° | ±12° |
| 500 | 20" | 255 | 16 | 25 | 36 | 48 | 22 | 30 | ±7.5° | ±12° |
| 600 | 24" | 260 | 16 | 25 | 40 | 50 | 22 | 33 | ±7.5° | ±12° |
| 700 | 28" | 260 | 16 | 25 | 40 | 55 | 22 | 33 | ±7.5° | ±12° |
| 750 | 30" | 260 | | | 40 | 55 | | 33 | | ±12° |
| 800 | 32" | 260 | 16 | 25 | 45 | 55 | 22 | 35 | ±7.5° | ±12° |
| 900 | 36" | 260 | 16 | 25 | 45 | 55 | 22 | 35 | ±7.5° | ±12° |
| 1000 | 40" | 260 | 16 | 25 | 45 | 60 | 22 | 35 | ±7.5° | ±12° |
| 1100 | 44" | 300 | | | 45 | 60 | | 35 | ±7.5° | ±12° |
| 1200 | 48" | 300 | 16 | 25 | 50 | 60 | 24 | 38 | ±7.5° | ±10° |
| 1300 | 52" | 300 | | | 50 | 60 | | 38 | | ±10° |
| 1400 | 56" | 350 | | | 50 | 70 | | 40 | | ±10° |
| 1500 | 60" | 350 | | | 60 | 70 | | 40 | | ±10° |
| 1600 | 64" | 350 | 18 | 25 | 60 | 70 | 24 | 46 | ±7.5° | ±10° |
| 1800 | 72" | 400 | 18 | 25 | 60 | 75 | 24 | 48 | ±7.5° | ±10° |
| 2000 | 80" | 450 | | | 70 | 75 | | 50 | | ±10° |
| 2200 | 88" | 500 | | | 70 | 80 | | 60 | | ±10° |
| 2400 | 96" | 500 | | | 80 | 80 | | 60 | | ±10° |
| 2600 | 104" | 500 | | | 85 | 80 | | 60 | | ±10° |
| 2800 | 112" | 550 | | | 85 | 80 | | 60 | | ±10° |
| 3000 | 120" | 550 | | | 85 | 80 | | 60 | | ±10° |
| • Special size and length can be customized for you. |
Customization:
Structure of product:Inner and outer rubber,nylon cord fabric,steel wire and flange
Rubber raw material:NR,NBR,SBR,EPDM,FKM,etc.(According to your needs)
Flange material:SS304,SS316,carbon steel, ductile iron,etc(According to your needs)
Size:DN15-DN4000
Length:customizable
Flange color:customizable
Standard of flange:DIN, BS, ANSI, JIS,ISO,etc.
Support and Services:
- Delivery inspection (pressure test, specification test, material, quantity, packing).
- The quality is guaranteed for 12 months, supportthird-party testing.
- Free solutions and drawings can be provided.
- A well-trained and disciplined professional packaging team.
- 24h online service, quick response before and after sales.
- Support online factory inspection.
- On-time delivery.
- Free samples can be provided.
FAQ:
Q1: What brand is the Single sphere flexible rubber joint and where is it made?
A1: The brand of the Single sphere flexible rubber joint is liwei, and it is manufactured in Henan, China.
Q2: What is the model number range available for the Single sphere flexible rubber joint?
A2: The model number for the Single sphere flexible rubber joint ranges from DN15 to DN4000, catering to various pipeline sizes.
Q3: What certifications does the Single sphere flexible rubber joint have?
A3: The Single sphere flexible rubber joint is certified with ISO9001, TUV, WRAS, CO, MTC, PL, IV, and other relevant certifications.
Q4: What is the minimum order quantity for the Single sphere flexible rubber joint?
A4: The minimum order quantity for the Single sphere flexible rubber joint is one set, allowing for flexibility in order size.
Q5: What are the packaging and delivery details for the Single sphere flexible rubber joint?
A5: The Single sphere flexible rubber joint is packaged with an inner plastic film and an outer wooden case. If multiple compensators are packed in one case, a steel frame is used to fix them. The delivery time is 15-30 working days after payment.
Q6: What are the payment terms for purchasing the Single sphere flexible rubber joint?
A6: The payment terms for the Single sphere flexible rubber joint include T/T, Western Union, L/C, D/A, and MoneyGram, providing a variety of options for payment.
Q7: How many Single sphere flexible rubber joints can liwei supply per month?
A7: liwei has the supply ability to provide 100000 pieces of Single sphere flexible rubber joints per month.
